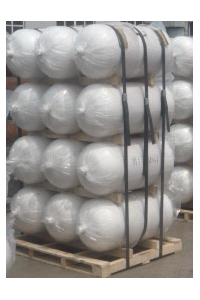

Name：ISO11439 CNG cylinder for vehicle
Details
ISO11439:2000 CNG-1 cylinder specifications table
Specification and parameters of CNG steel cylinder for the on-board of compressed natural gas as a fuel for vehicles
| Type No |
Outer Diameter (mm) |
Water Capacity(L) |
Length(mm) |
Weight(kg) |
Service Pressure (MPa) |
Design Wall Thickness(mm) |
Material |
| CNP20-20-232A |
232 |
20 |
660 |
25 |
20 |
5.6 |
34CrMo4 |
| CNP20-28-232A |
28 |
880 |
33 |
| CNP20-34-232A |
34 |
1040 |
38 |
| CNP20-40-232A |
40 |
1200 |
45 |
| CNP20-57-356A |
356 |
57 |
820 |
71 |
20 |
8.2 |
34CrMo4 |
| CNP20-60-356A |
60 |
850 |
73 |
| CNP20-65-356A |
65 |
910 |
77 |
| CNP20-70-356A |
70 |
970 |
82 |
| CNP20-75-356A |
75 |
1020 |
86 |
| CNP20-77-356A |
77 |
1050 |
88 |
| CNP20-80-356A |
80 |
1080 |
91 |
| CNP20-90-356A |
90 |
1200 |
100 |
| CNP20-100-356A |
100 |
1300 |
108 |
| CNP20-113-356A |
113 |
1430 |
118 |
| CNP20-145-356A |
145 |
1800 |
146 |
| CNP20-160-356A |
160 |
1970 |
159 |
| CNP20-100-406A |
406 |
100 |
1060 |
111 |
20 |
9.8 |
34CrMo4 |
| CNP20-110-406A |
110 |
1150 |
120 |
| CNP20-120-406A |
120 |
1240 |
129 |
| CNP20-130-406A |
130 |
1330 |
137 |
| CNP20-140-406A |
140 |
1420 |
145 |
| CNP20-145-406A |
145 |
1460 |
150 |
| CNP20-198-406A |
198 |
1920 |
194 |
|
