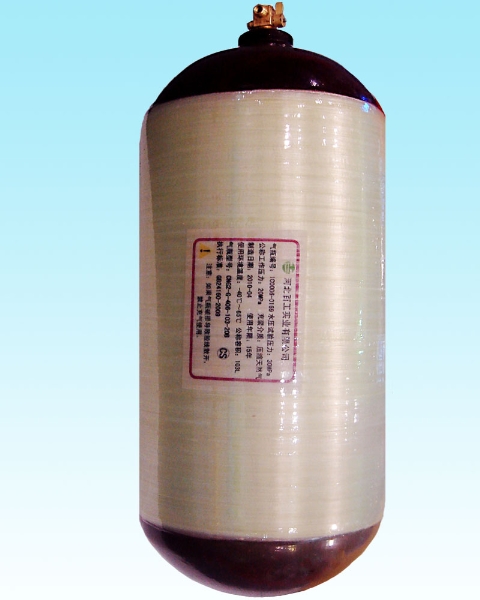

Name：GB24160/ISO11439 CNG-2 Cylinder for Automotive Vehicle
Details
| Specifications and parameters for hoop-wrapped glass fiber composite materials cylinders with steel liner of compressed natural gas for automotive vehicles |
| Type No. |
Outer Diameter(mm) |
Water Capacity(L) |
Length(mm) |
Weight(kg) |
Service Pressure(MPa) |
Design Wall Thickness(mm) |
Material |
| CNG2-G-232-30-20B |
232 |
30 |
876±5 |
25 |
20 |
3.6 |
30CrMo+Glass fibre & Epoxy
|
| CNG2-G-325-50-20B |
325 |
50 |
810±5 |
42 |
20 |
4.9 |
| CNG2-G-325-55-20B |
55 |
875±5 |
46 |
| CNG2-G-325-60-20B |
60 |
940±5 |
50 |
| CNG2-G-325-65-20B |
65 |
1005±5 |
54 |
| CNG2-G-325-70-20B |
70 |
1070±5 |
58 |
| CNG2-G-325-80-20B |
80 |
1200±5 |
66 |
| CNG2-G-325-90-20B |
90 |
1330±5 |
74 |
| CNG2-G-325-100-20B |
100 |
1460±5 |
82 |
| CNG2-G-325-110-20B |
110 |
1590±5 |
90 |
| CNG2-G-325-120-20B |
120 |
1720±5 |
98 |
| CNG2-G-356-65-20B |
356 |
65 |
871±5 |
59 |
20 |
5.5 |
30CrMo+Glass fibre & Epoxy
|
| CNG2-G-356-70-20B |
70 |
926±5 |
62 |
| CNG2-G-356-75-20B |
75 |
981±5 |
65 |
| CNG2-G-356-80-20B |
80 |
1036±5 |
68 |
| CNG2-G-356-85-20B |
85 |
1091±5 |
71 |
| CNG2-G-356-90-20B |
90 |
1146±5 |
74 |
| CNG2-G-356-103-20B |
103 |
1285±5 |
84 |
| CNG2-G-356-100-20B |
100 |
1256±5 |
82 |
| CNG2-G-356-110-20B |
110 |
1366±5 |
89 |
| CNG2-G-356-120-20B |
120 |
1476±5 |
96 |
| CNG2-G-356-200-20B |
200 |
2356±10 |
155 |
| CNG2-G-406-80-20B |
406 |
80 |
850±5 |
70 |
20 |
6.0 |
30CrMo+Glass fibre & Epoxy
|
| CNG2-G-406-90-20B |
90 |
930±5 |
74 |
| CNG2-G-406-100-20B |
100 |
1010±5 |
82 |
| CNG2-G-406-103-20B |
103 |
1030±6 |
85 |
| CNG2-G-406-110-20B |
110 |
1100±5 |
88 |
| CNG2-G-406-120-20B |
120 |
1180±5 |
95 |
| CNG2-G-406-200-20B |
200 |
1850±10 |
152 | |
|
