GB17258 CNG Steel Cylinder for Vehicle

Your Current Location ： Home Products GB17258 CNG Steel Cylinder for Vehicle

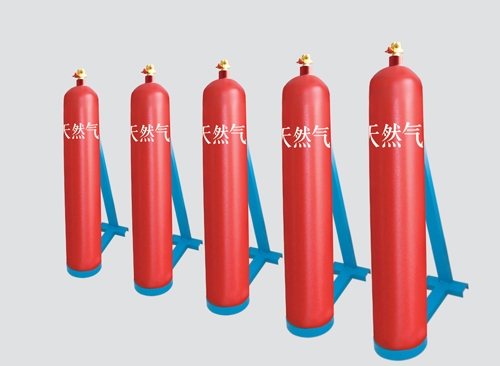

GB17258 CNG Steel Cylinder for Vehicle

GB17258 CNG Steel cylinders for Vehicle

Name：GB17258 CNG Steel cylinders for Vehicle

Details
Specifications and parameters for steel cylinders for the on-board of compressed natural gas as a fuel for vehicles
Type No. Outer Diameter(mm) Water Capacity(L) Length(mm) Weight(kg) Service Pressure(MPa) Design Wall Thickness(mm) Material
CNP20-40-279A 279 40 900 55 20 7.8 30CrMo
CNP20-50-279A 50 1090 65
CNP20-60-279A 60 1280 76
CNP20-65-279A 65 1375 81
CNP20-70-279A 70 1470 86
CNP20-80-279A 80 1660 97
CNP20-90-279A 90 1850 107
